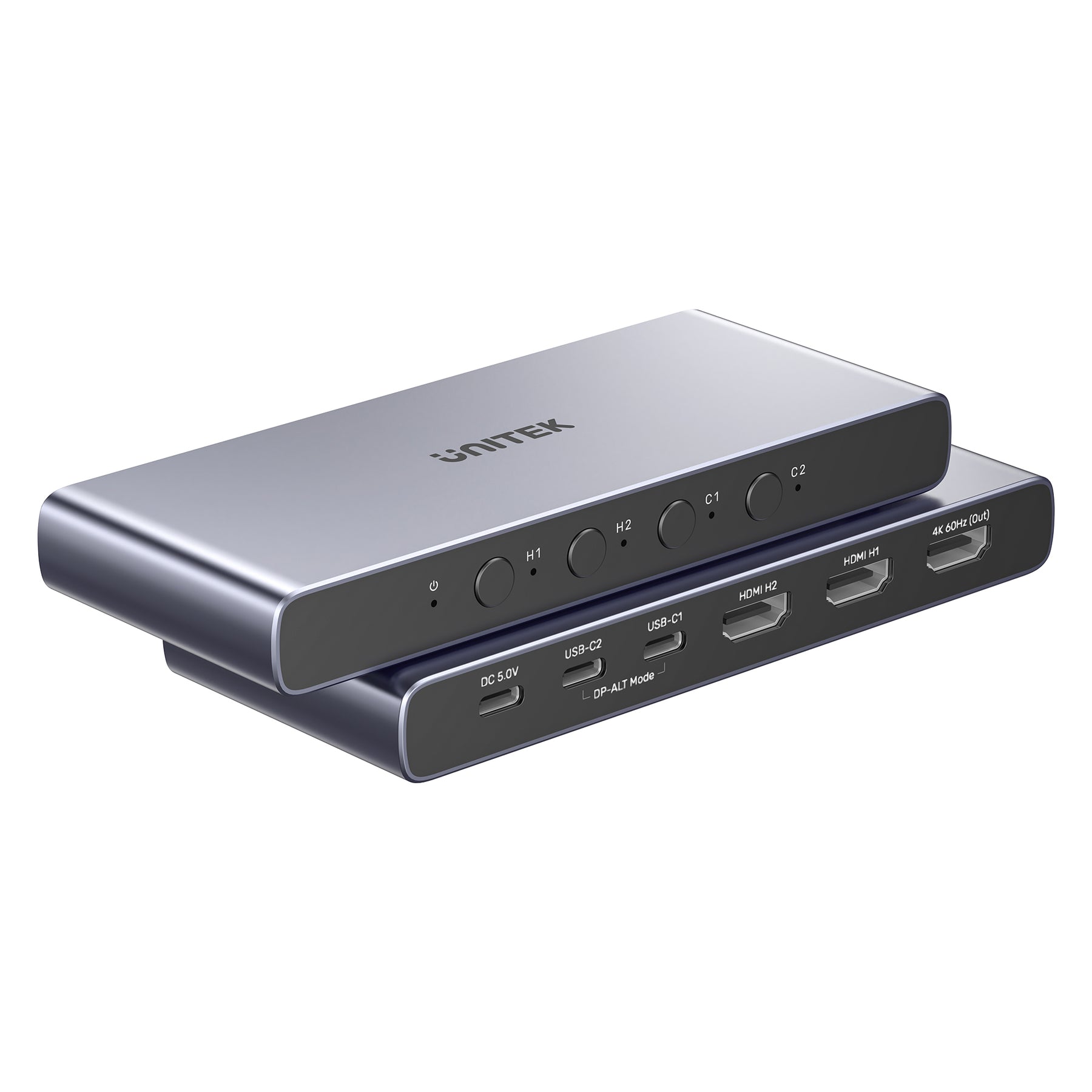

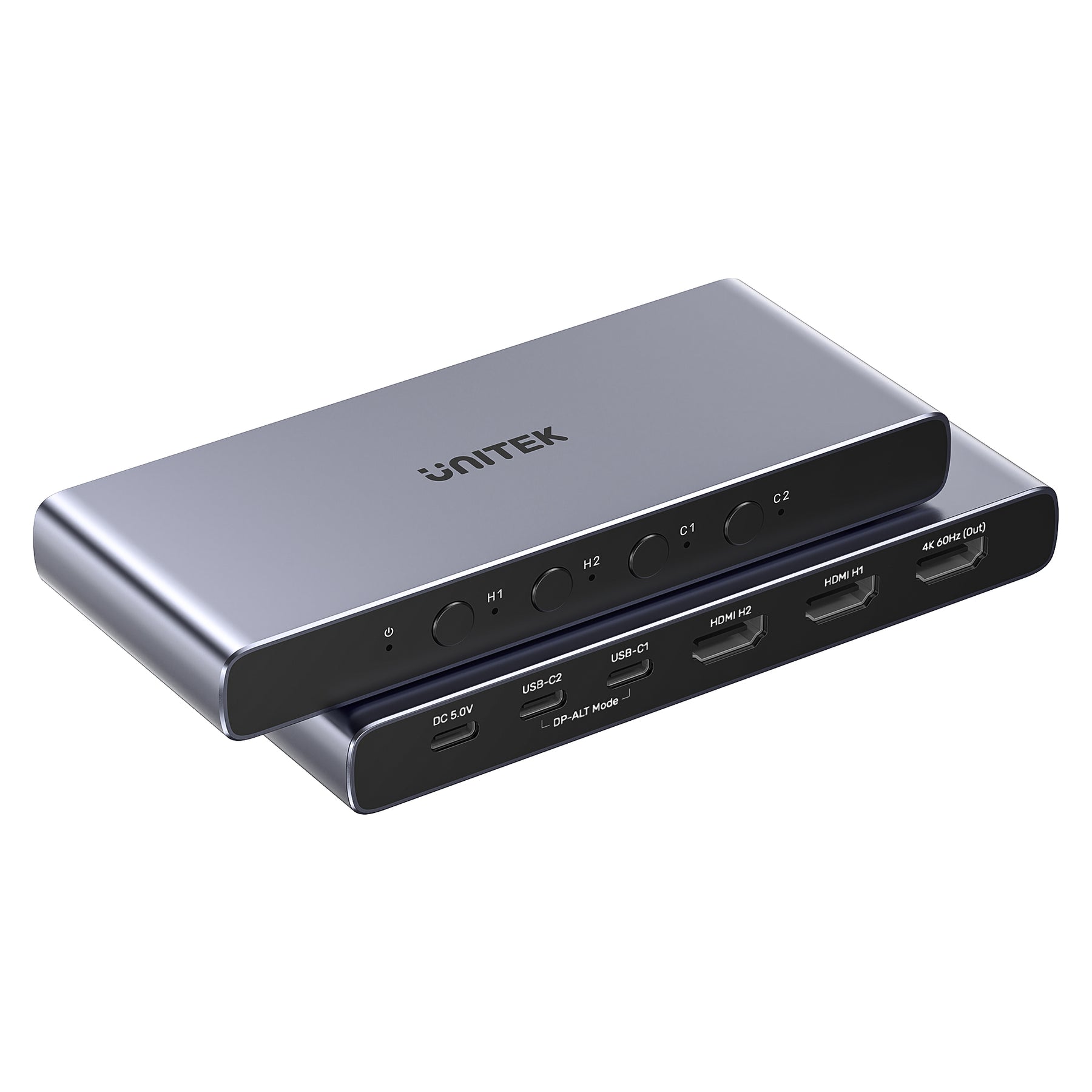

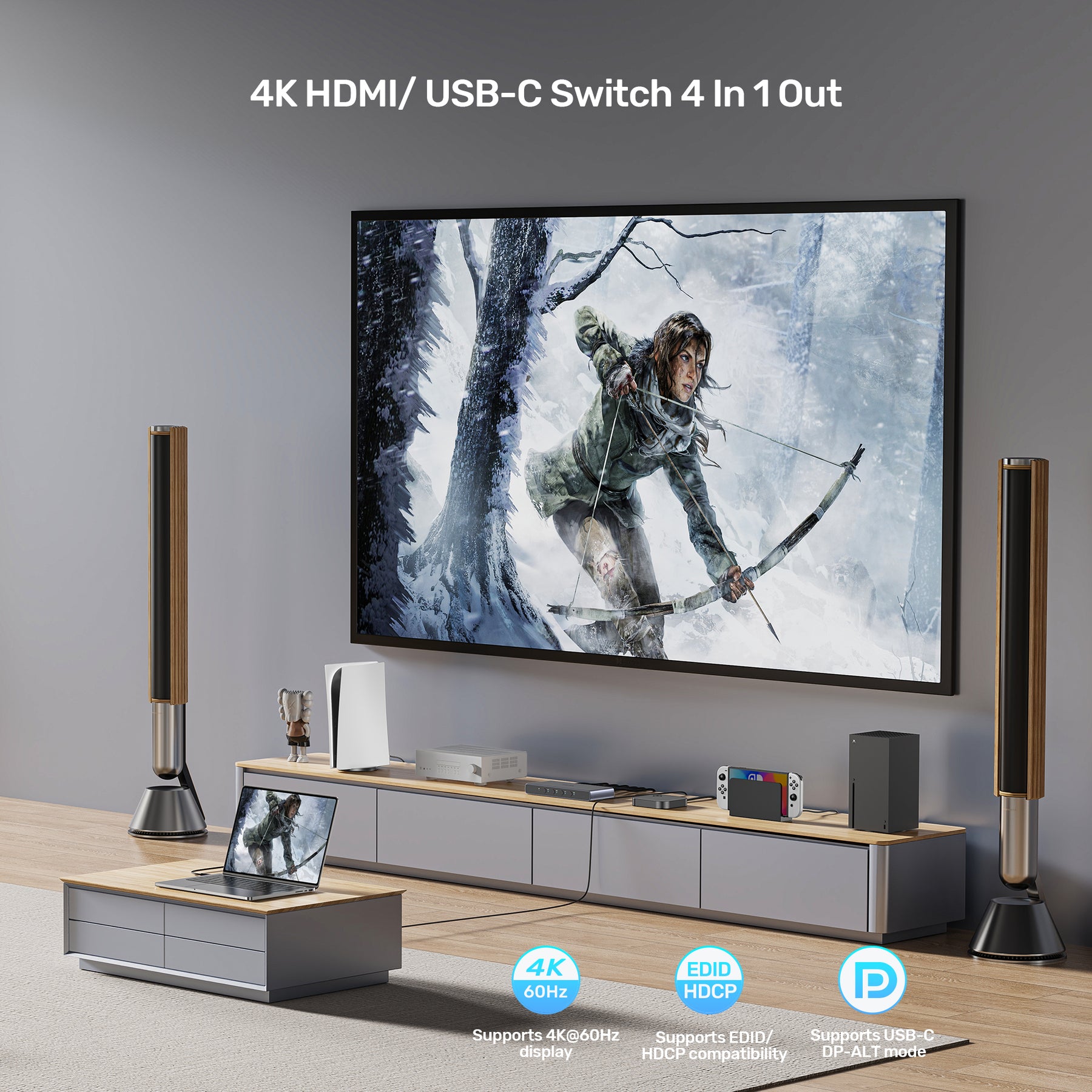

4K HDMI/ USB-C Switch 4 In 1 Out

• 4K UHD Visual Feast: The 4K HDMI/ USB-C Switch 4 In 1 Out features two HDMI sources and two USB-C (DP-ALT mode) interfaces, enabling four-input free switching for easy transitions between different signal sources. Supports resolutions up to 4K@60Hz, compliant with HDMI 2.0b/1.4 standards, and is compatible with HDCP 2.2/2.3 and HDCP 1.4. Supports HDR (HDR10/HDR10+/Dolby Vision/HLG); also supports Variable Refresh Rate (VRR), FreeSync, GSync, and ALLM.

• Rapid Source Switching: UNITEK 4K HDMI/ USB-C Switch 4 In 1 Out supports the EDID Quick Switch function (Quick Switch Mode, EDID Memory), facilitating quicker signal source identification during multi-source switching. (Note: EDID retention feature is unavailable for HDCP-encrypted sources.)

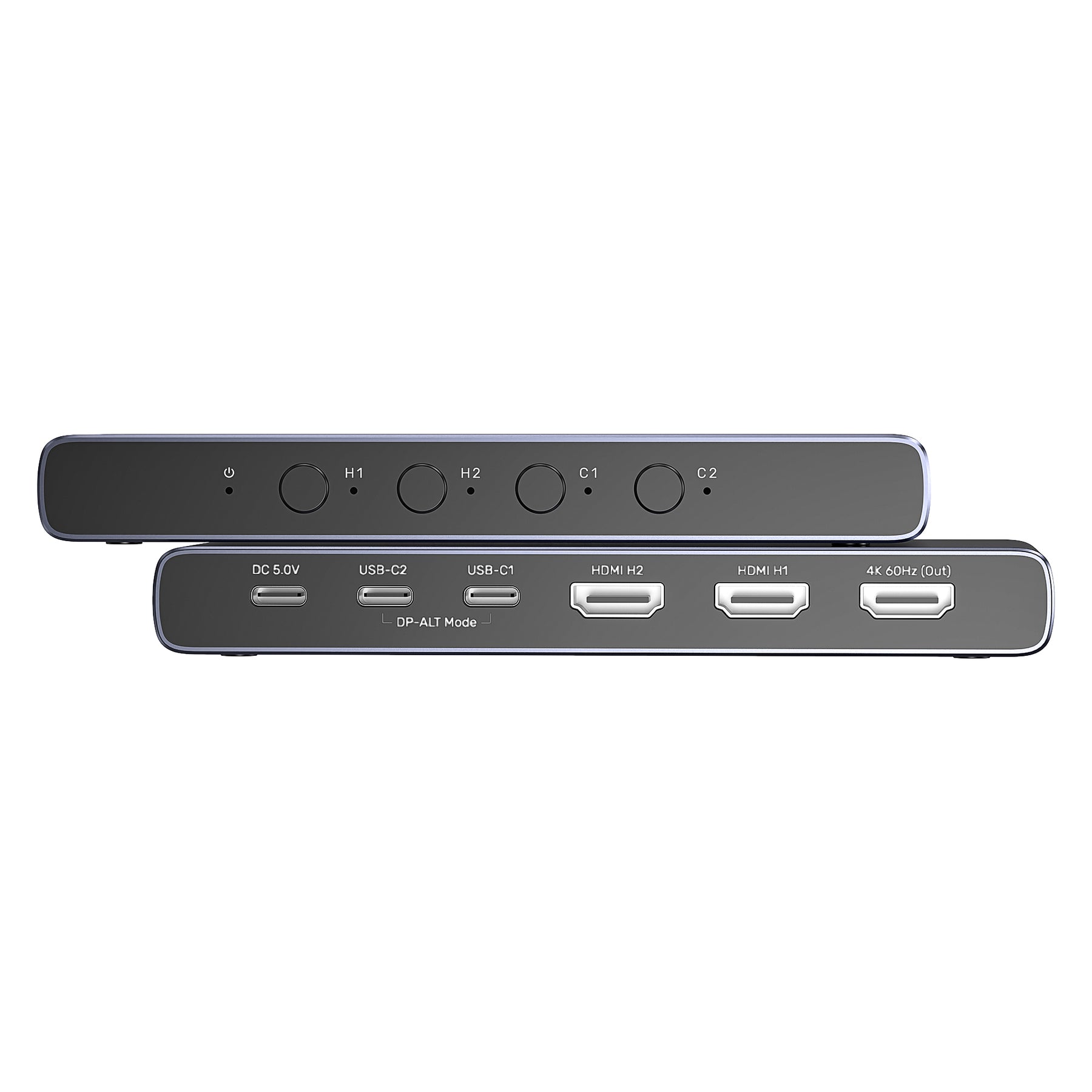

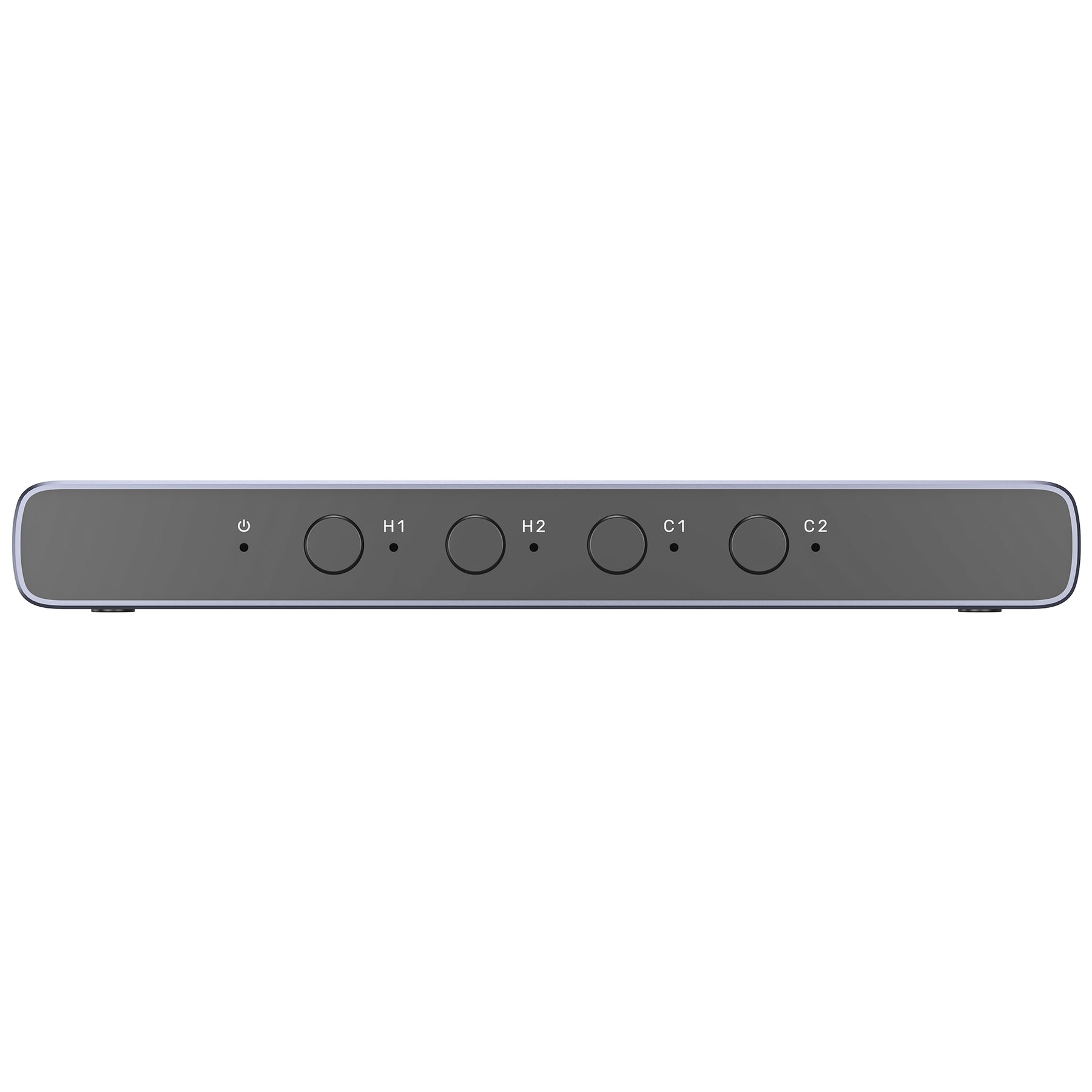

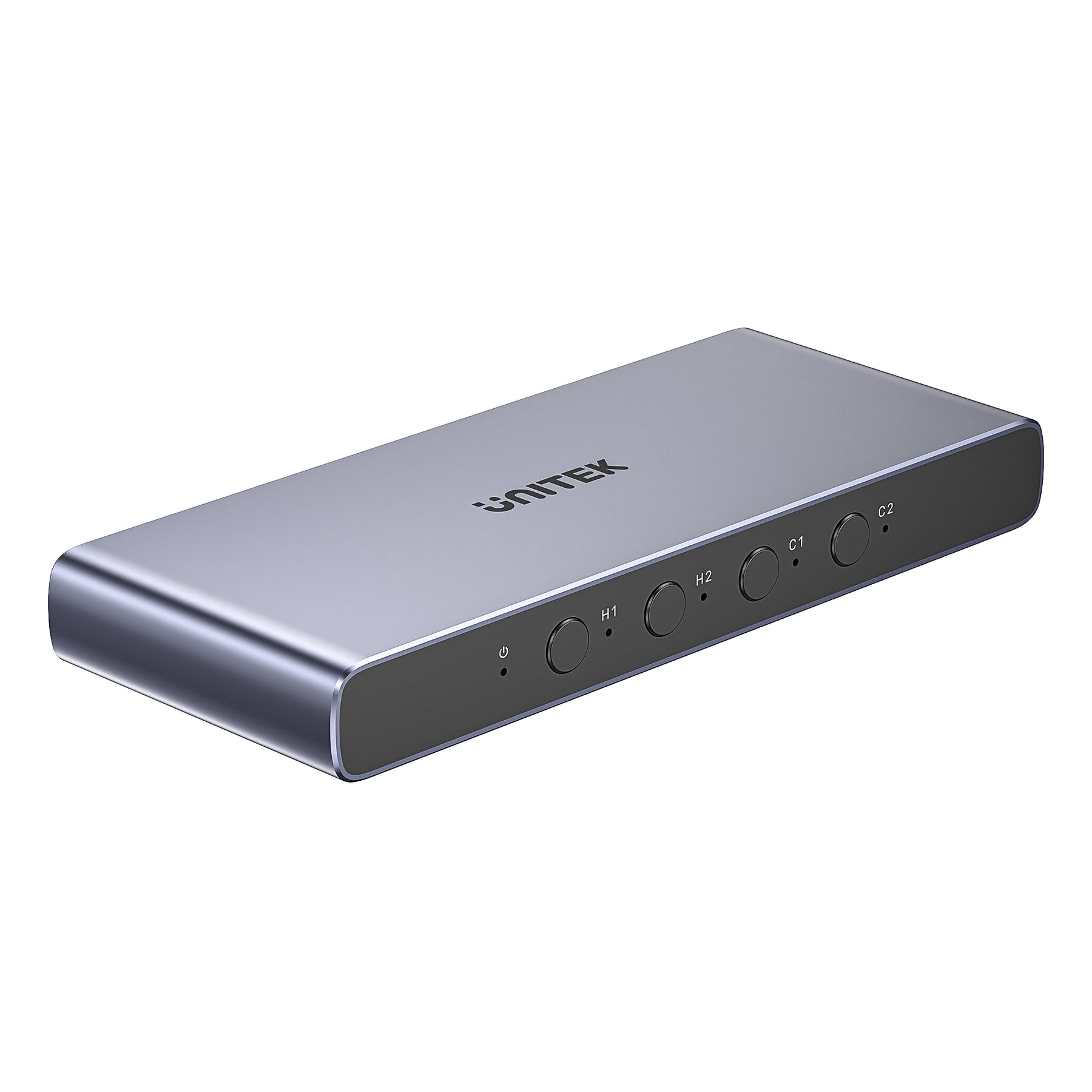

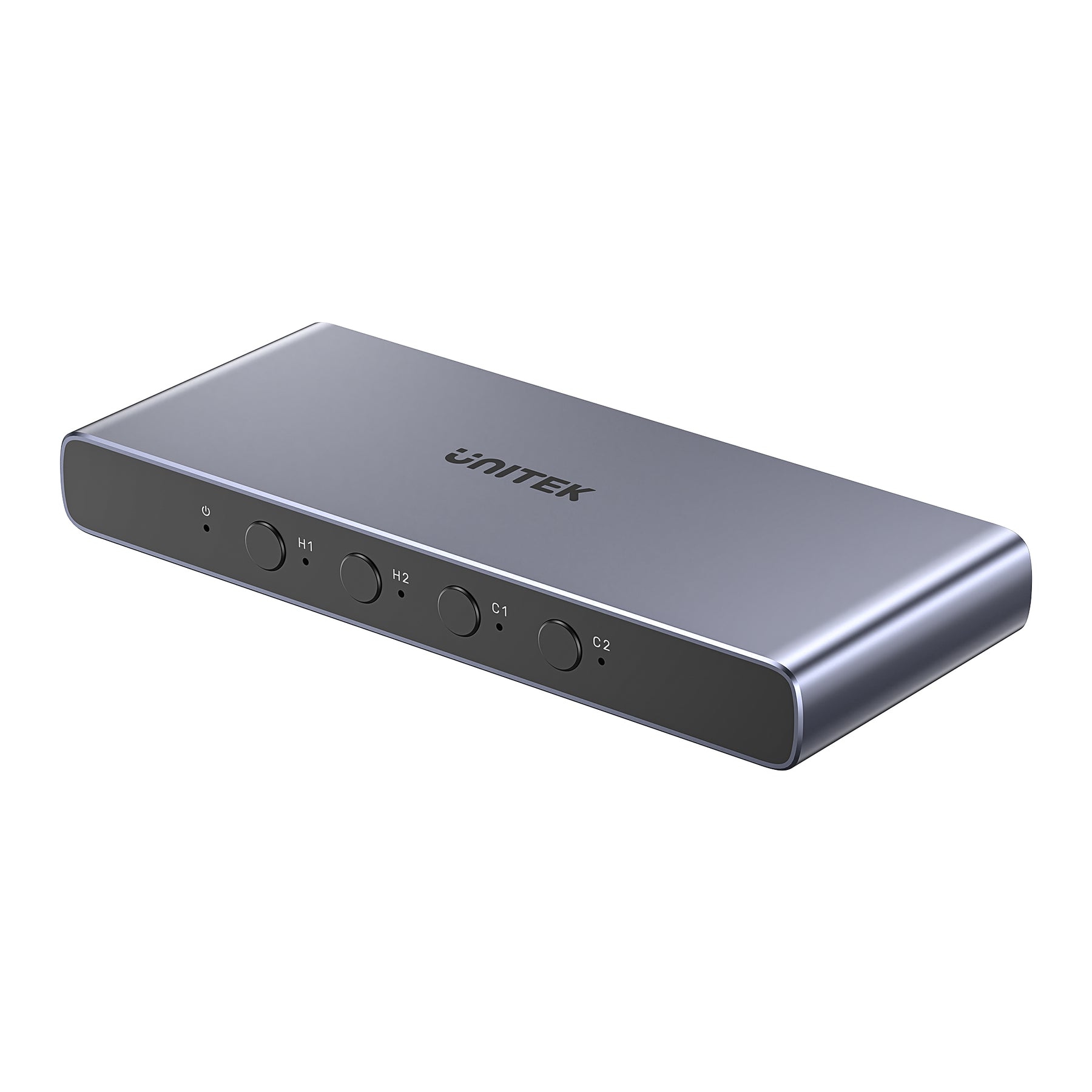

• One-Touch Device Switching: The select button on the 4K HDMI/USB-C Switch 4 In 1 Out allows you to switch among four devices at any time with a simple press. Four blue LED indicators clearly show which port is actively connected to your TV or monitor.

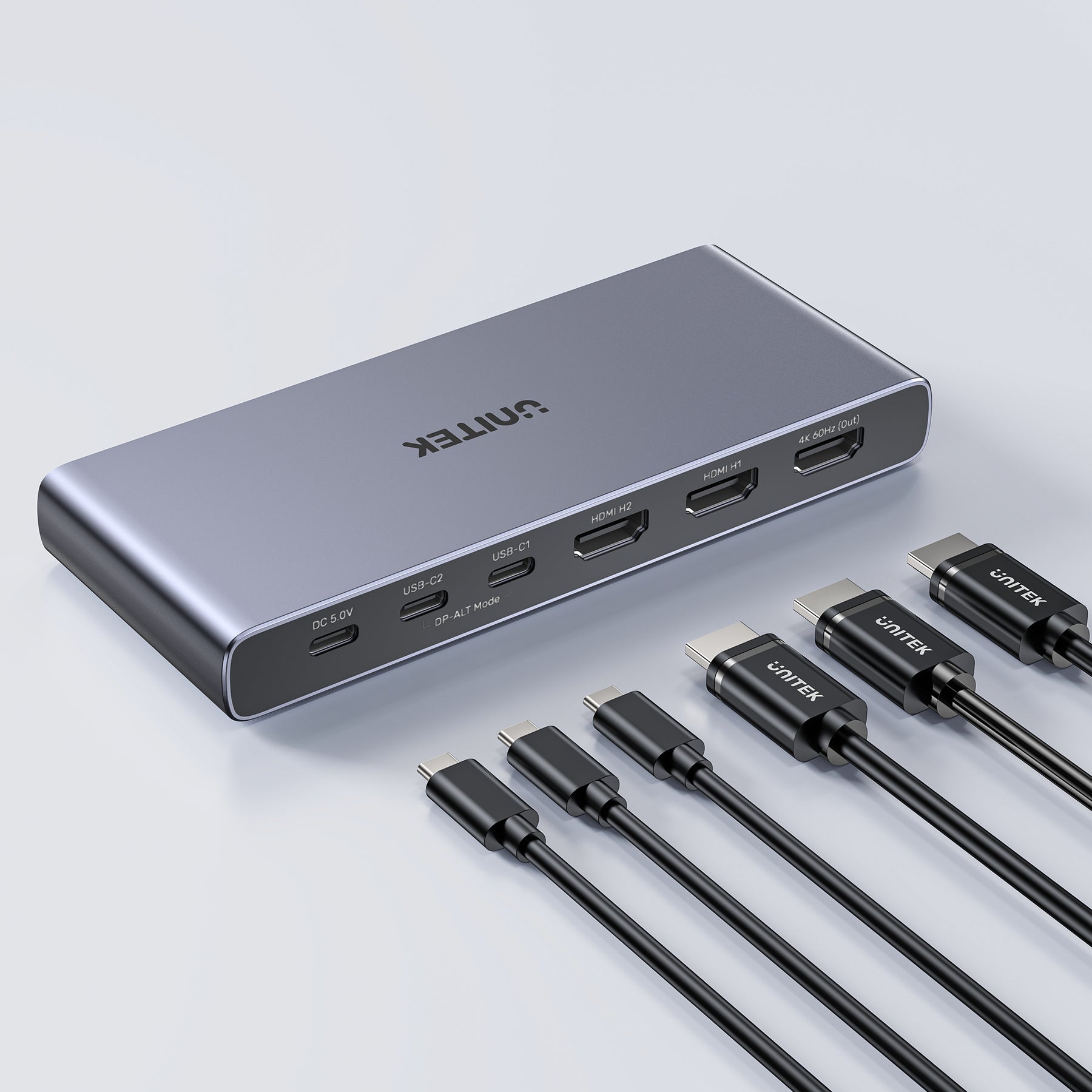

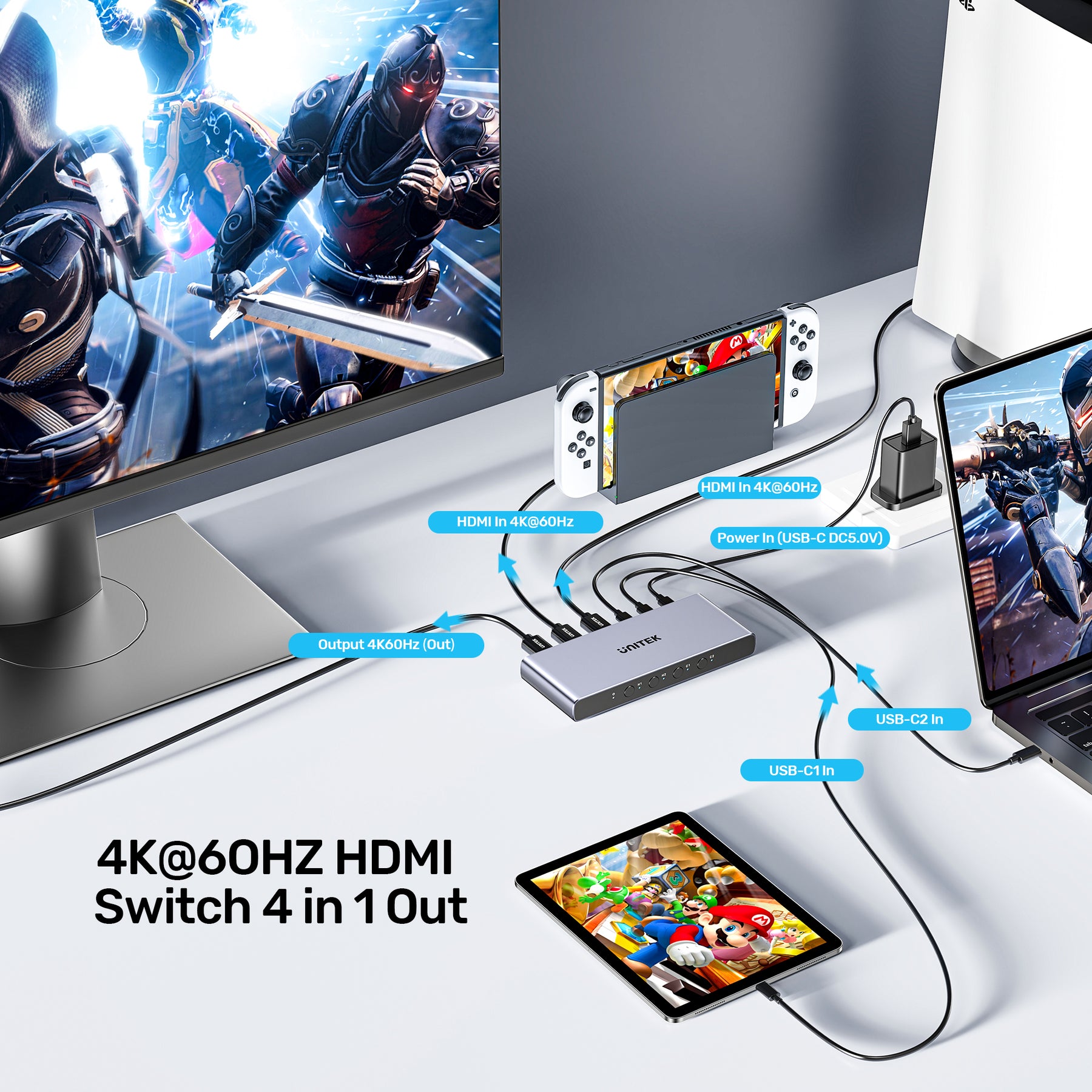

• Wide Compatibility: UNITEK 4K HDMI/ USB-C Switch 4 In 1 Out is compatible with a wide range of HDMI and USB-C (DP-ALT mode) source devices, including PS5/4, Blu-ray players, Xbox, Nintendo Switch, PCs, laptops, iPads, mobile phones, and projectors. (Note: Full-feature USB-C and HDMI cables are NOT included.)

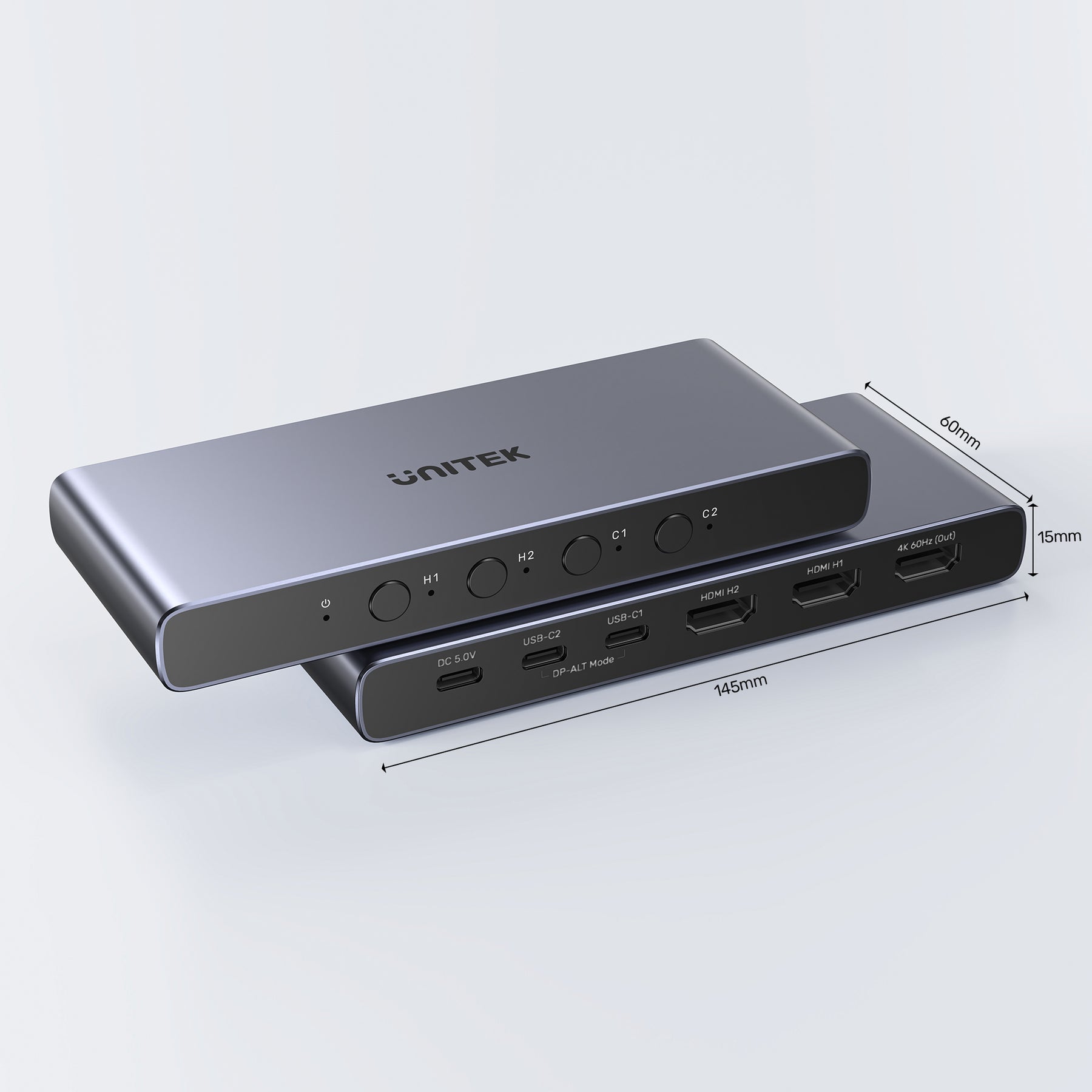

Dimensions: 145mm x 60mm x 15mm

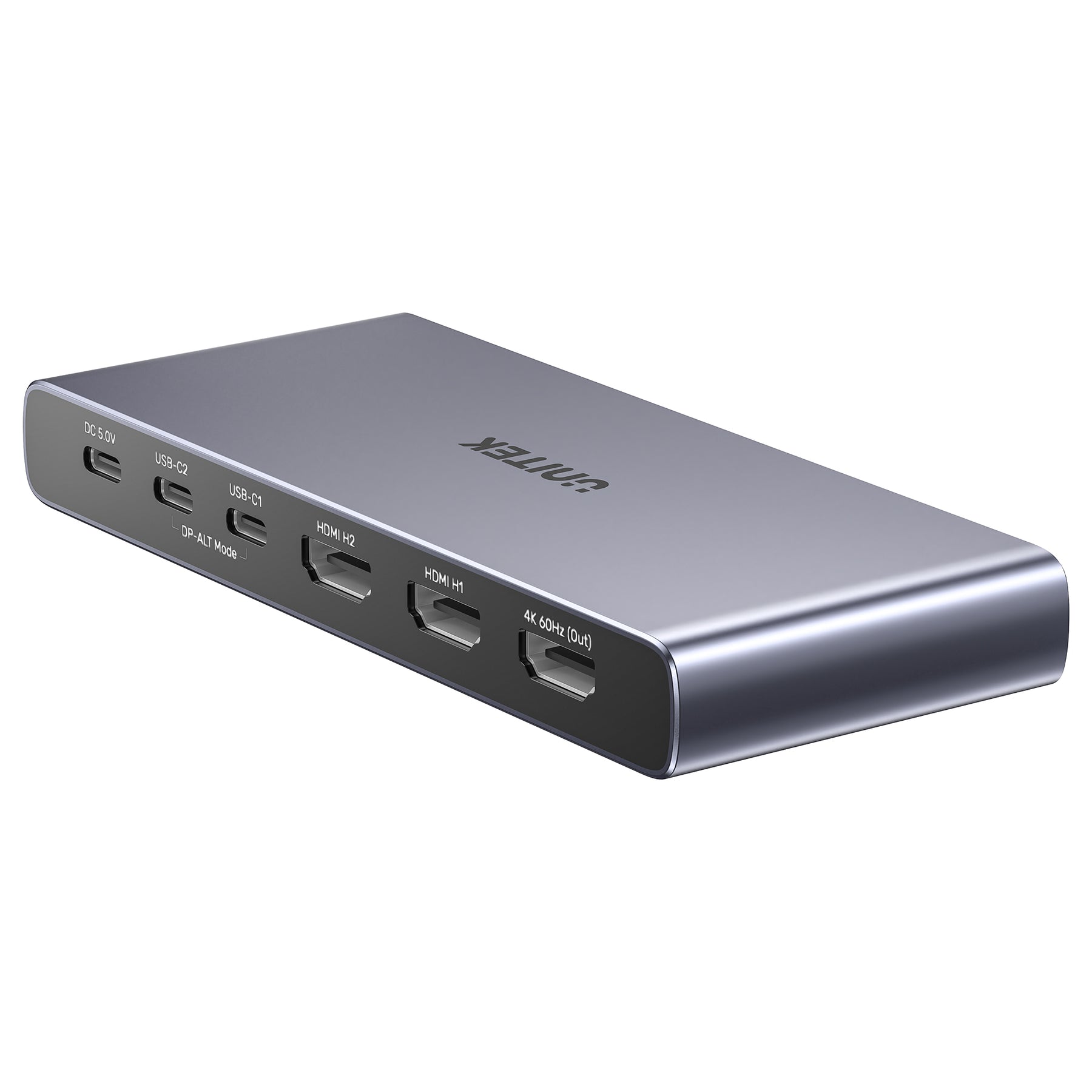

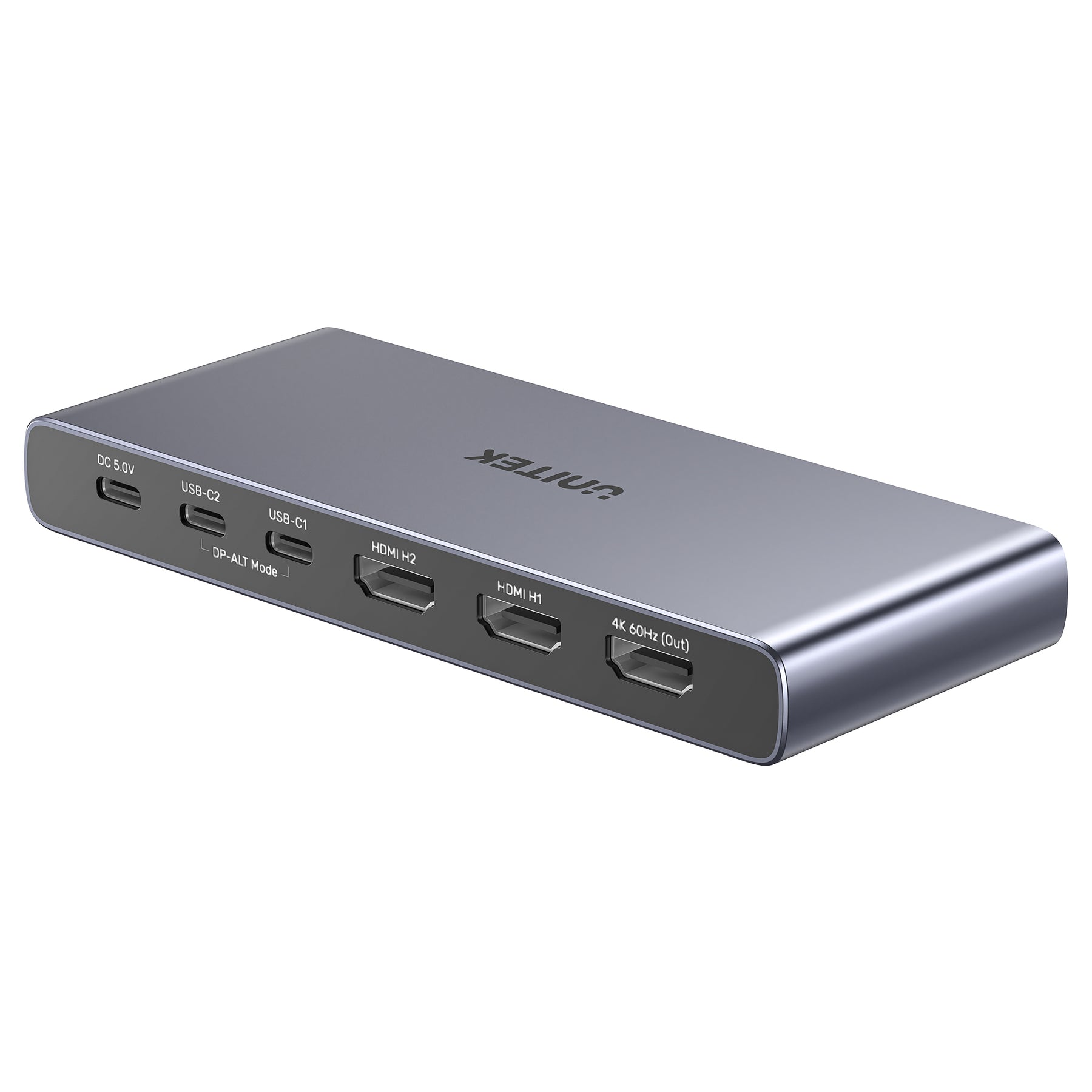

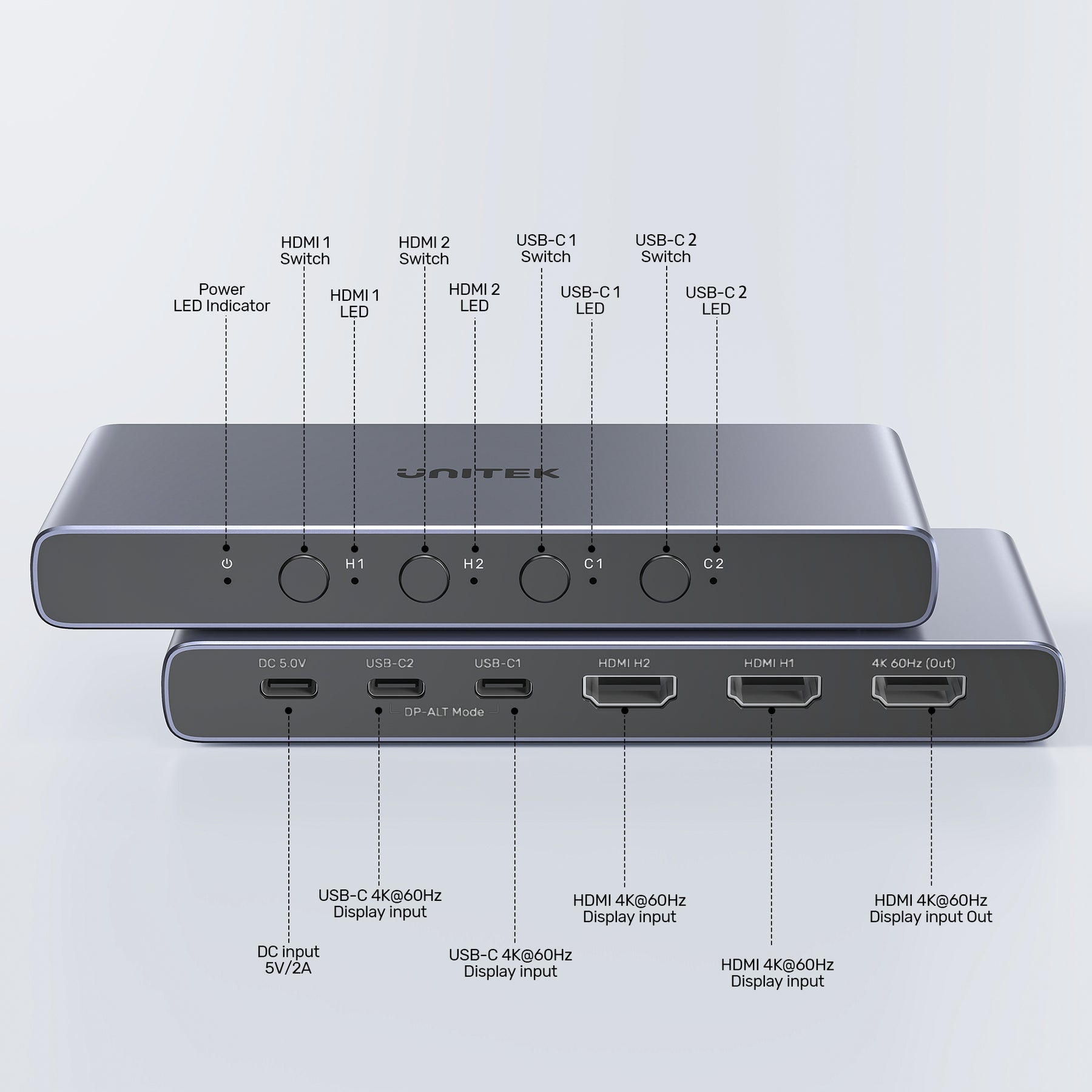

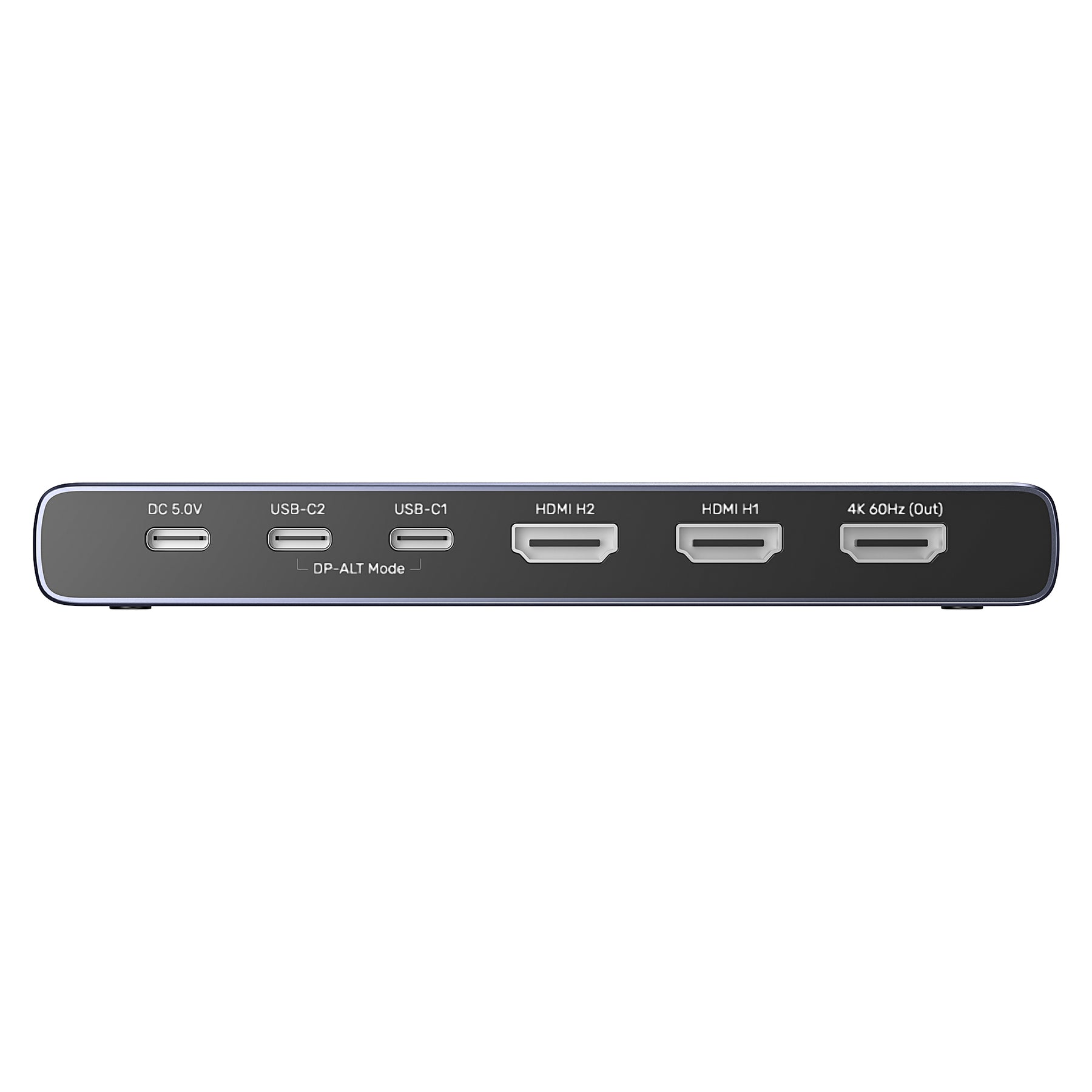

Upstream: 2 x HDMI+ 2 x USB-C (DP-ALT)
Downstream: 1 x HDMI2.0
HDCP: HDCP2.3/ 2.2/ 1.4
Output Resolution: Up to 4K@60Hz
LED: White Power LED x 1: Steady on during operation
Blue Status LEDs x 4: Active ports remain lit; inactive ports are turned off
Switch Method: 4 x Select Buttons
Power Supply: USB-C DC5.0V

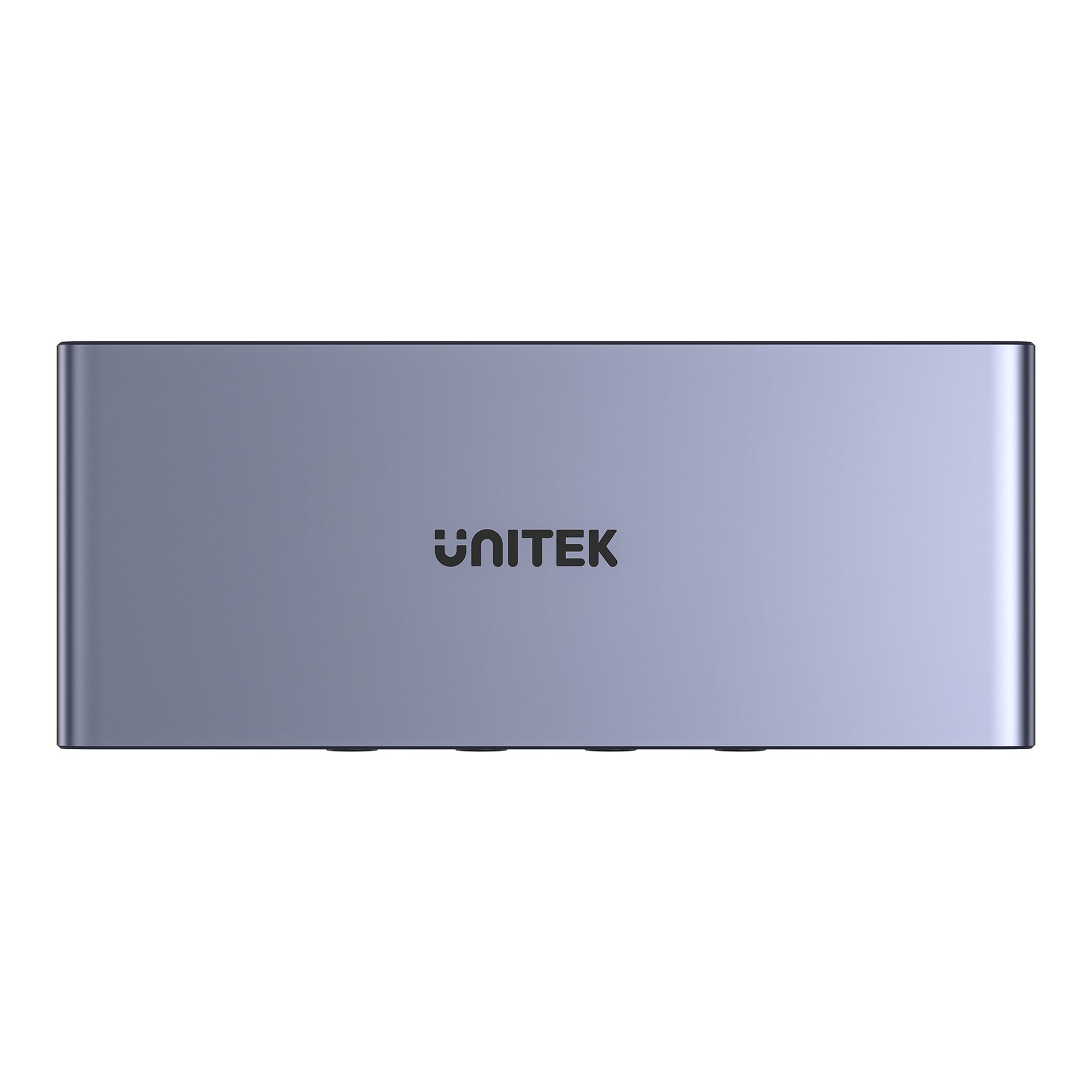

Material/ Colour: Aluminum Alloy/ Space Grey

• 1 x 4K HDMI/ USB-C Switch 4 in 1 out
• 1 x 1.5m USB-A to C Charging Cable
• 1 x 5V/2A USB-A Power Adapter
• 1 x User Manual
